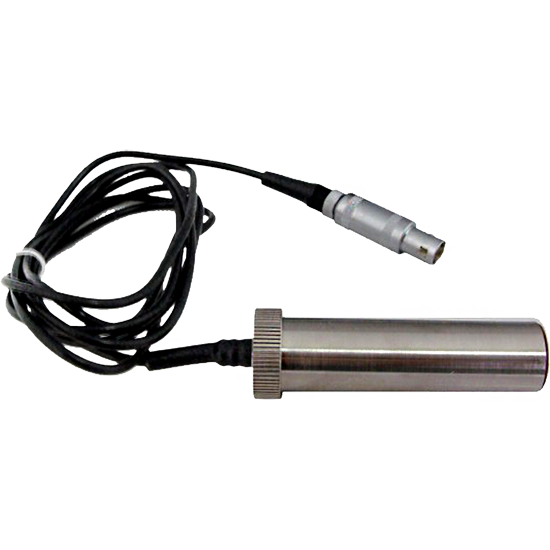

    Ultrasonic Immersion Probe

    Brand:

    Mitech

    Model:

    Measuring range:

    Resolution Accuracy:

    Communication storage:

    Working time:

    Main unit weight:

    Dimensions:

    Package dimensions:

    Total weight:

    Product

    • Overview
    • Graphic
    • Technical
    • Configuration
    • Related

    Product

    • Overview
    • Graphic
    • Technical
    • Configuration
    • Related

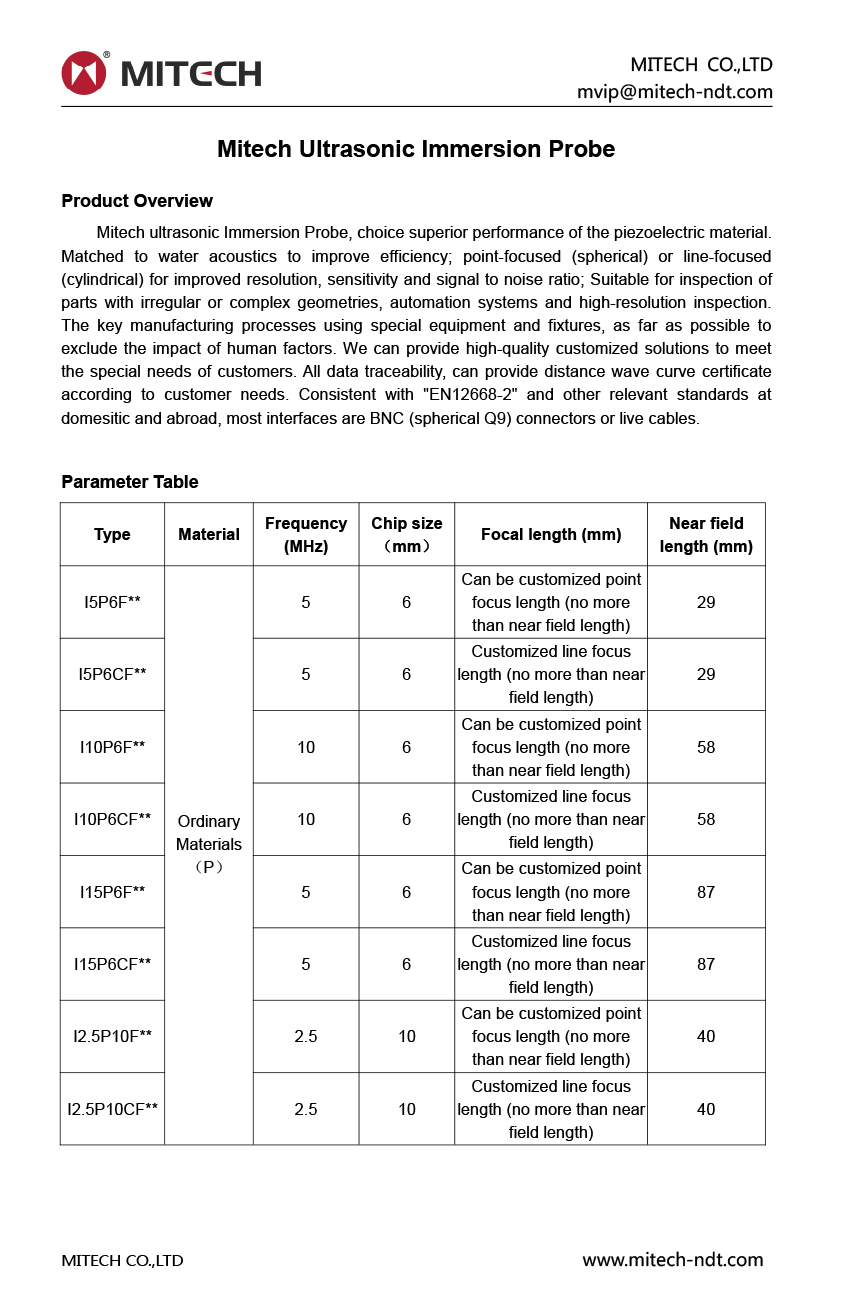

    • Product Overview

      Mitech ultrasonic Immersion Probe, choice superior performance of the piezoelectric material. Matched to water acoustics to improve efficiency; point-focused (spherical) or line-focused (cylindrical) for improved resolution, sensitivity and signal to noise ratio; Suitable for inspection of parts with irregular or complex geometries, automation systems and high-resolution inspection. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. We can provide high-quality customized solutions to meet the special needs of customers. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at domesitic and abroad, most interfaces are BNC (spherical Q9) connectors or live cables.

      Function & application

       (1) With anomalous or complex geometrical shape components.

       (2) Automated system.

       (3) For application situation requires high resolution detection.

      Working Principle

      Working Conditions

      Instrument Features

      (1) Match hydroacoustics performance to raise efficiency.

      (2) Realize point focusing (spherical surface) or line focusing (cylinder), raise resolution, sensitivity and signal-to-noise ratio.

      (3) BNC(Q9) connector or with cable.

      Operating Method and Attentions

      Instrument Maintenance

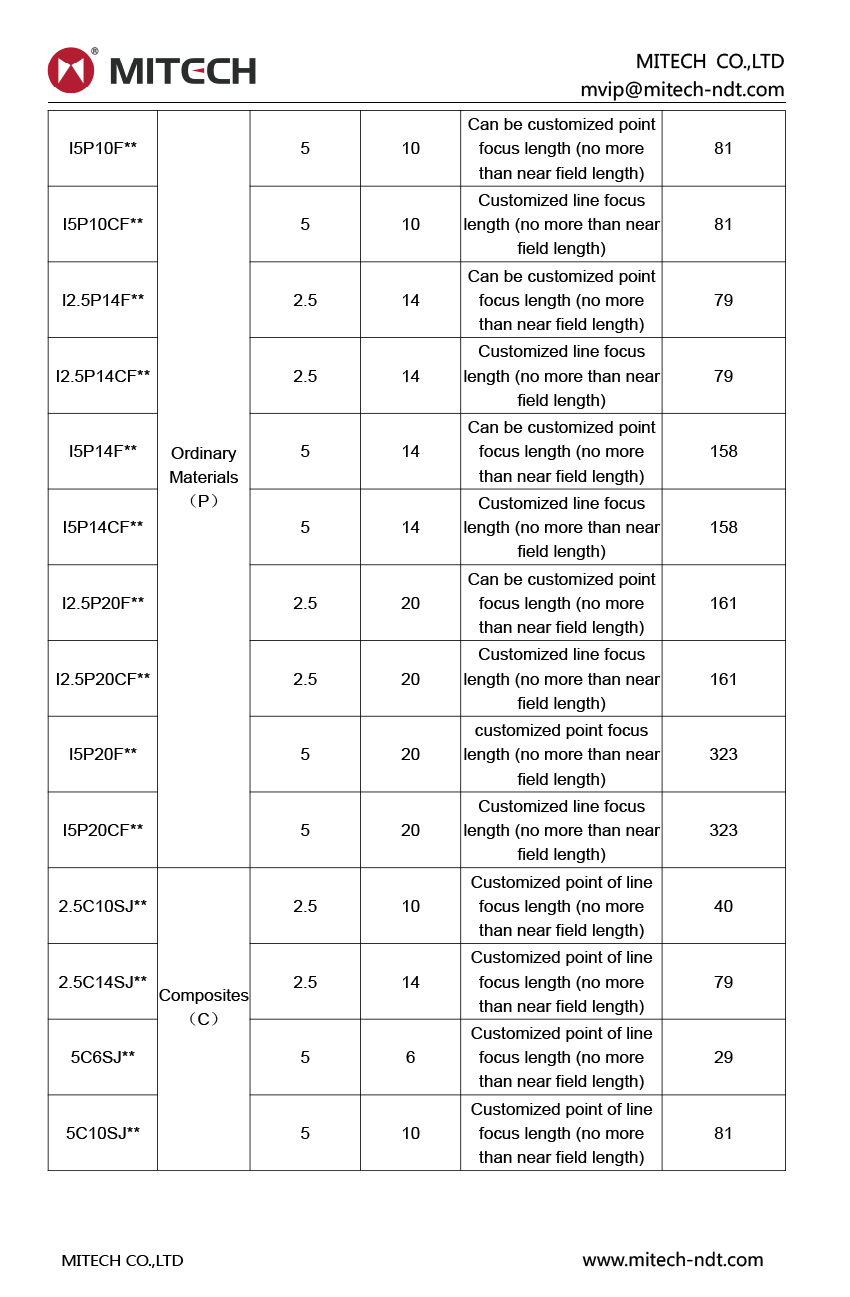

    • Frequency 2.5/5/10MHz
      Chip size 6/10/14/20mm
      Material Ordinary Materials or Composites
    ×
