    Dual Element Probe-EN

    Brand:

    Mitech

    Model:

    Measuring range:

    Resolution Accuracy:

    Communication storage:

    Working time:

    Main unit weight:

    Dimensions:

    Package dimensions:

    Total weight:

    Product

    • Overview
    • Graphic
    • Technical
    • Configuration
    • Related

    Product

    • Overview
    • Graphic
    • Technical
    • Configuration
    • Related
    • Product Overview

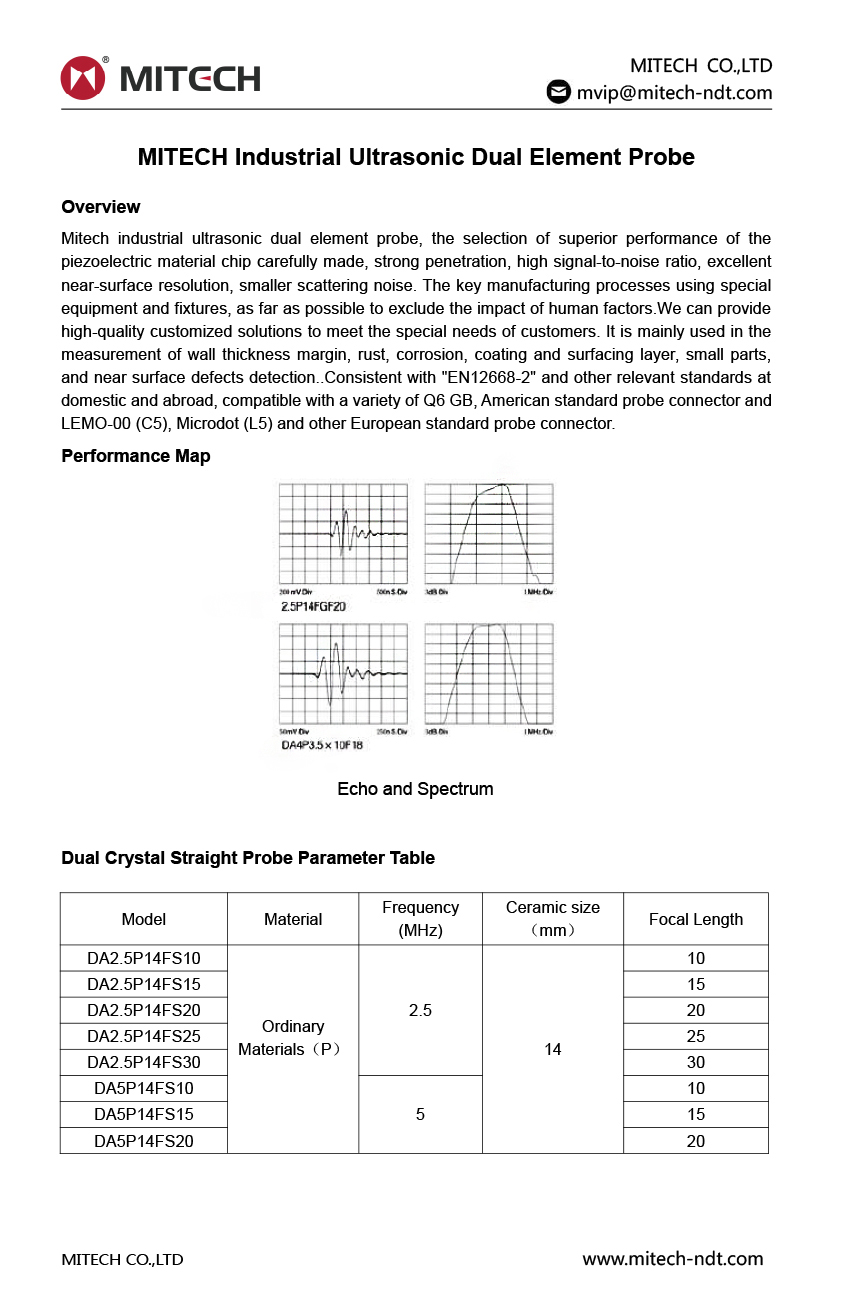

      Mitech industrial ultrasonic dual element probe, the selection of superior performance of the piezoelectric material chip carefully made, strong penetration, high signal-to-noise ratio, excellent near-surface resolution, smaller scattering noise. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors.We can provide high-quality customized solutions to meet the special needs of customers. It is mainly used in the measurement of wall thickness margin, rust, corrosion, coating and surfacing layer, small parts, and near surface defects detection..Consistent with "EN12668-2" and other relevant standards at domestic and abroad, compatible with a variety of Q6 GB, American standard probe connector and LEMO-00 (C5), Microdot (L5) and other European standard probe connector.

      Function & application


       (1) Near surface resolution is excellent.

        (2) Scattered noise is small.

        (3) Probes interface for national standard.

        (4) Most Europe standard probe with LEMO connector, microdot connector(sidepiece or top direction).


      Working Principle

      Working Conditions

      Instrument Features

       (1) Wall thickness margin, rust-eaten, corrosion.

        (2) Near surface flaw detection.

        (3) Small parts-screws, bolts, pin.

        (4) Adhesive detection.

        (5) Shaft, rod, billet core defects.

        (6) Train wheels.

        (7) Shaft, rod, billet core defects.

      Operating Method and Attentions

      Instrument Maintenance

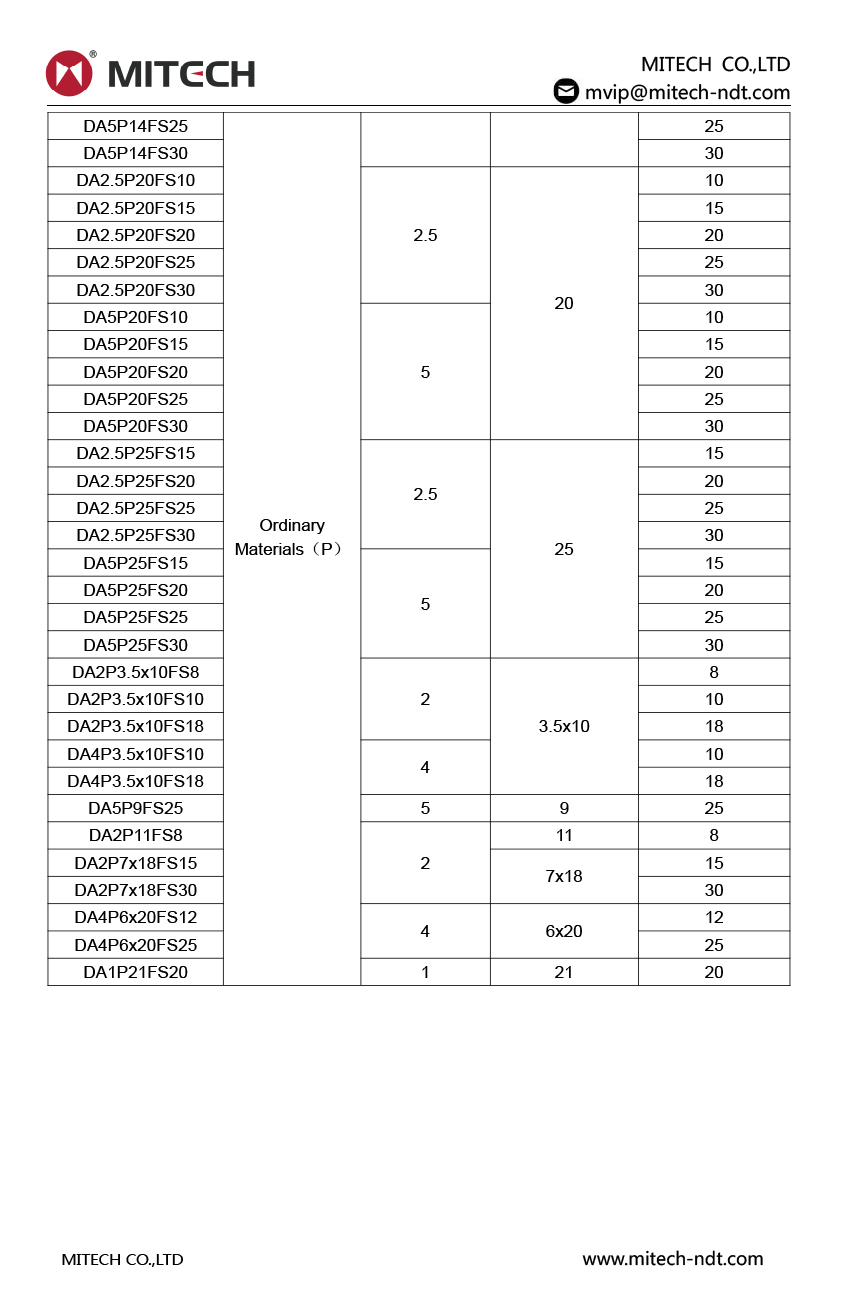

    • Focal Length 8/10/12/5/18/20/25/30
      Ceramic?size (mm) 9φ/11φ/14φ/20φ/25φ/3.5x10/7x18/6x20
      Frequency (MHz) 1P/2P/2.5P/4P/5P
      Material Ordinary Materials(P)
    ×
